Resistance Calculation of a Trimmed Resistor: Precision Analysis Guide

A Trimmed Resistor

Laser trimming is a precision process used in manufacturing to fine-tune electronic circuit parameters by adjusting resistor values. This involves using a laser to remove parts of a resistor, thereby increasing its resistance. This technique allows for real-time adjustments during circuit testing, ensuring optimal resistor values. The adjustment process applies to both thick and thin-film resistors on various substrates, including ceramic and surface-mounted devices, leveraging the resistor's geometry and material properties.

Laser trimming process
Figure 1 - Laser trimming process



Resistor cut-away
Figure 2 - Resistor cut-away

Description

To compute the resistance, electric field, current density, and potential distributions of a laser-trimmed resistor made of copper and backed by an aluminum slab with a 10-volt load applied at the extremities, an Electric Conduction analysis is required. This involves calculating the resistance based on the geometry and material properties of the copper resistor and aluminum backing. The analysis will exclude air modeling to focus on the conduction through the resistor and backing materials. This process enables the precise determination of electrical performance characteristics critical for optimizing the resistor's function in an electronic circuit.

3D model of trimmed resistor
Figure 3 - 3D model of trimmed resistor

Study

To compute resistance in EMS, the Electric Conduction module is essential, calculating resistance as the voltage-to-current ratio. Users must define entry and exit points for current flow in the resistor set, allowing EMS to determine voltage difference and current. The process involves four critical steps: selecting appropriate materials, applying boundary conditions (Loads/Restraints), meshing the model, and executing the solver. This systematic approach ensures accurate resistance calculation and detailed analysis of electric conduction within the specified setup.

Materials

In EMS Electric Conduction analysis, the required properties for simulation are electrical and thermal conductivity, assuming thermal coupling is considered. This simplifies material characterization for accurate analysis, focusing on how well materials conduct electricity and, if relevant, heat.

Table 1 - Table of materials

Components / Bodies Material Conductivity (S/m)
Trimmed  Aluminum 38.2e+006
Part 2 Gold 41e+006

Load and Restraint

In the study, specific voltage values are predefined (as detailed in a referenced table) and resistance configurations are established, which are depicted in an illustration. These parameters are crucial for conducting the analysis, and guiding the simulation's boundary conditions and objectives.

Table 2 - Applied Fixed Voltage

Name Fixed Voltage
Front Electrode 0.6 V
Back Electrode 0 V
Resistance Sets applied in the body where we want to calculate the resistance
Figure 4 - Resistance Sets applied in the body where we want to calculate the resistance

Meshing

Meshing is vital in design analysis, as EMS calculates an optimal mesh size based on the model's geometry, affecting solution speed and accuracy. Larger mesh elements offer quicker, approximate results, while smaller elements are used for detailed, accurate analysis. This balance between element size and computational efficiency allows for tailored analysis precision.

Meshed Model
Figure 5 - Meshed Model

Results

After running the simulation, EMS provides comprehensive results, including visualizations of the Electric Field, Current Density, and Potential, alongside a detailed table summarizing resistance and dissipated power. These outputs allow for a thorough analysis of the electrical performance.

Results Table
Figure 6 - Results Table


EMS provides various visualization options, including fringe and vector plots to display magnetic flux density. These plots offer detailed insights into the magnetic field distribution within the simulated model, enhancing the analysis of electromagnetic properties.
Electric Field
Figure 7 - Electric Field
Electric Field, line plot (Iso clipping)
Figure 8 - Electric Field, line plot (Iso clipping)
Current Density, vector plot
Figure 9 - Current Density, vector plot

Line segment plot of Current Density between two points in the opposite faces of trim
Figure 10 - Line segment plot of Current Density between two points in the opposite faces of trim

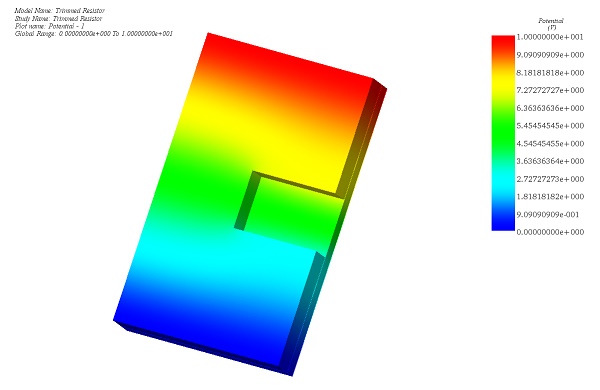

Potential
Figure 11 - Potential

Conclusion

The application note details the significance of laser trimming in adjusting resistor values for electronic circuits, emphasizing its precision and real-time adjustments during testing. The process is applicable to various resistor types and substrates, facilitating optimal circuit performance. Using Electric Conduction analysis, the resistance, electric field, current density, and potential distributions of laser-trimmed resistors are computed, focusing on copper resistors backed by aluminum. Key steps involve material selection, boundary condition application, meshing, and solver execution. EMS provides detailed results, including visualizations of electric field, current density, and potential, aiding in understanding electromagnetic properties. Overall, laser trimming offers a reliable method for fine-tuning circuit parameters, ensuring efficient electronic circuit operation.
