Transient Magnetic Analysis

Transient Magnetic Analysis in EMWORKS

• Transient Magnetic Analysis is a dynamic discipline within electromagnetic simulation, focusing on the ever-changing behavior of magnetic fields as they interact with materials and systems.
• Unlike static conditions, it examines magnetic fields and currents that vary over time, offering insights into dynamic and time-dependent environments.
• Provides engineers, researchers, and designers with the ability to observe and predict the evolution of magnetic forces, eddy current, and losses.

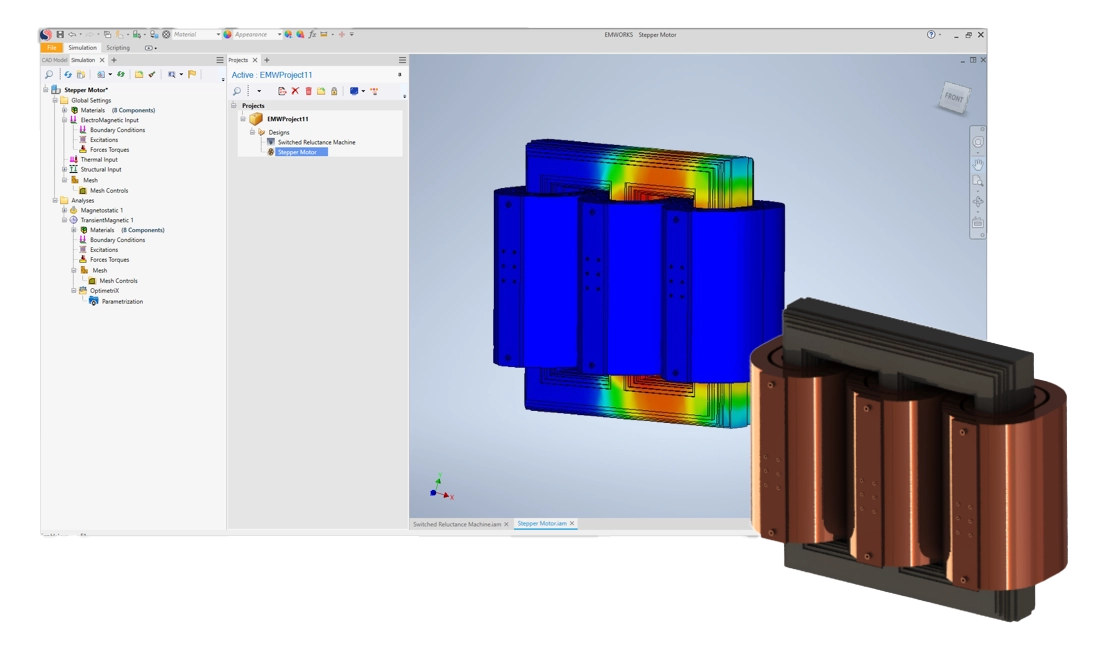

• With an accessible simulation platform and built-in professional CAD, EMWORKS simplifies the design and analysis of dynamic electromagnetic systems.
• Enables optimized designs and solutions for industries and applications that rely on dynamic electromagnetic systems.
• Essential for advancing innovations in power electronics, electrical machinery, magnetic sensors, and more.

Key Features of EMWORKS' Transient Magnetic Analysis

Transient Magnetic Analysis, a sophisticated and dynamic branch of electromagnetic simulation, offers a rich array of key features and benefits that empower engineers, researchers, and designers across various industries. Understanding these features and advantages is crucial for harnessing the full potential of Transient Magnetic Analysis in optimizing electromagnetic systems. Let's delve into these key aspects:

Time-Dependent Magnetic Field Modeling:

Transient Magnetic Analysis specializes in modeling magnetic fields that evolve over time. This capability allows engineers to study dynamic scenarios, such as the startup, shutdown, or transient behavior of electromagnetic devices.

Inductance and Energy Dynamics:

This analysis enables the assessment of inductive components like coils, inductors, and transformers. Engineers can explore energy storage, release, and transfer, crucial for designing efficient electrical systems.

Eddy Current and Loss Analysis:

Dynamic magnetic fields can induce eddy currents in conductive materials, leading to energy losses and heating. Transient Magnetic Analysis helps identify and mitigate these effects, ensuring optimal device performance and efficiency.

Electromagnetic Compatibility (EMC) Evaluation:

Ensuring that electronic systems operate harmoniously in dynamic magnetic environments is essential. Transient Magnetic Analysis aids in EMC assessment, identifying potential interference issues and optimizing designs for compatibility.

Transient Overcurrent and Overvoltage Analysis:

Engineers can study the effects of transient overcurrent and overvoltage events, helping to design protective measures and ensure the reliability of electrical systems in the face of unexpected surges.

Efficient Coil and Transformer Design:

Transient Magnetic Analysis allows for the fine-tuning of coil and transformer designs by considering time-varying magnetic effects. This optimization leads to enhanced energy transfer and reduced losses.

Magnetic Actuator and Sensor Performance:

It enables the evaluation of magnetic actuator and sensor performance in dynamic scenarios, ensuring precise and reliable operation in applications like automotive systems, robotics, and aerospace.

Control of Electromagnetic Transients:

Engineers can analyze and control electromagnetic transients, minimizing the impact of sudden voltage or current changes on electrical grids and sensitive equipment.

Material Characterization and Selection:

Transient Magnetic Analysis aids in material selection by assessing their response to time-varying magnetic fields. This information is invaluable for designing efficient magnetic shielding and insulating materials.

Innovation in Renewable Energy:

In the renewable energy sector, Transient Magnetic Analysis plays a critical role in optimizing the performance of generators, converters, and energy storage systems, contributing to the growth of sustainable energy sources.

Electromagnetic Noise Reduction:

By studying transient magnetic effects, engineers can identify and mitigate electromagnetic noise sources, enhancing the reliability of electronic systems and improving signal quality.

Accurate Circuit Breaker and Switchgear Design:

Transient Magnetic Analysis assists in the precise design of circuit breakers and switchgear, ensuring their effectiveness in interrupting fault currents and protecting electrical systems.

Aerospace and Defense Applications:

It finds applications in aerospace and defense for designing electromagnetic shielding, sensors, and actuators, where rapid changes in magnetic fields are common.

Research and Development Support:

Transient Magnetic Analysis serves as a vital tool for researchers across various fields, facilitating experiments and simulations related to time-varying magnetic phenomena.

Improved Product Reliability:

By accurately assessing transient magnetic effects, engineers can enhance product reliability, reducing the likelihood of equipment failure and costly downtime.

Multi-Physics Simulation:

Transient Magnetic Analysis seamlessly couples with other physics simulations like structural, thermal, and fluid dynamics analysis. This multidisciplinary approach enables comprehensive system-level simulations, ensuring holistic optimization and reliability.

Non-Destructive Testing (NDT):

In industries like aerospace and manufacturing, Transient Magnetic Analysis is used for non-destructive testing of materials and structures. It can detect hidden defects or anomalies in metallic components, ensuring product quality and safety.

Enhanced Electric Motor Design:

Electric motors in automotive and industrial applications benefit from Transient Magnetic Analysis by allowing engineers to fine-tune motor designs for improved efficiency, reduced cogging, and smoother operation.

Fault Analysis and Diagnostics:

Engineers can utilize Transient Magnetic Analysis to diagnose and analyze faults in electrical systems, helping to identify the root causes of failures and develop effective maintenance strategies.
Incorporating Transient Magnetic Analysis into the design and analysis processes offers a plethora of advantages, enabling engineers to address complex challenges, optimize performance, and drive innovation across numerous domains. This versatility and effectiveness make it an indispensable tool in the modern engineering toolkit.

Applications and Devices for Transient Magnetic Analysis

Transient Magnetic Analysis is a powerful tool with a wide range of applications across various industries. This versatile simulation technique allows engineers and researchers to gain crucial insights into the dynamic behavior of magnetic fields, making it invaluable in optimizing designs and systems. Below are some prominent applications and devices where Transient Magnetic Analysis plays a pivotal role:

1. Electric Motors and Generators:

Transient Magnetic Analysis is extensively used in the design and analysis of electric motors and generators. It helps optimize motor efficiency, reduce cogging, and ensure smooth operation.

2. Transformers:

Engineers rely on Transient Magnetic Analysis to design transformers that efficiently transfer electrical energy between circuits while minimizing losses and ensuring reliable performance.

3. Inductors and Coils:

Inductors and coils are fundamental components in electronics. Transient Magnetic Analysis assists in their design for various applications, including energy storage, signal filtering, and electromagnetic interference (EMI) suppression.

4. Power Electronics:

Devices like converters, inverters, and rectifiers in power electronics benefit from Transient Magnetic Analysis. It aids in optimizing switching frequencies, reducing losses, and improving overall efficiency.

5. Wireless Charging Systems:

The development of wireless charging technologies, such as those used in electric vehicles and consumer electronics, relies on Transient Magnetic Analysis to optimize energy transfer efficiency and system performance.

6. Electromagnetic Brakes and Clutches:

In automotive transmissions and industrial machinery, electromagnetic brakes and clutches rely on Transient Magnetic Analysis for reliable engagement and disengagement.

7. Magnetic Resonance Imaging (MRI):

The medical field benefits from Transient Magnetic Analysis when designing MRI machines. It ensures precise control over magnetic fields for accurate imaging and patient safety.

8. Energy Harvesting Systems:

Transient Magnetic Analysis contributes to the development of energy harvesting systems that capture and convert environmental energy sources, such as vibrations and magnetic fields, into usable electrical energy.

9. Electromagnetic Pulse (EMP) Protection:

Critical infrastructure, military installations, and electronic systems rely on Transient Magnetic Analysis to assess and enhance their protection against electromagnetic pulse (EMP) events.

10. Electromagnetic Interference (EMI) Mitigation:

Transient Magnetic Analysis plays a crucial role in the design of electronic devices and systems to minimize electromagnetic interference. It helps engineers identify potential sources of EMI and develop shielding solutions.

11. Power Distribution Systems:

Designing efficient power distribution systems, including substations and distribution transformers, benefits from Transient Magnetic Analysis. It ensures a stable power supply, reduces losses, and enhances grid reliability.

12. Magnetic Levitation (Maglev) Systems:

Transient Magnetic Analysis is instrumental in optimizing magnetic levitation systems used in transportation, such as high-speed trains. It ensures precise control of levitation forces for safe and efficient travel.

13. Magnetic Bearings:

Advanced industrial machinery and rotating equipment employ magnetic bearings for frictionless operation. Transient Magnetic Analysis helps design and analyze these bearings for optimal performance and stability.

14. Particle Accelerators:

Particle accelerators used in scientific research and medical treatments rely on Transient Magnetic Analysis for precise control of magnetic fields. It ensures the stability of particle trajectories and beam quality.

15. Magnetic Sensors and Actuators:

In consumer electronics, automotive applications, and industrial automation, Transient Magnetic Analysis aids in the design and optimization of magnetic sensors and actuators for various functions, including position sensing and actuation.

16. Electromagnetic Compatibility (EMC) Testing:

EMC testing laboratories employ Transient Magnetic Analysis to evaluate the electromagnetic compatibility of electronic products. It ensures compliance with regulatory standards and the absence of interference issues.

17. Magnetic Particle Inspection (MPI):

In non-destructive testing (NDT) applications, Transient Magnetic Analysis is used for magnetic particle inspection to detect surface and subsurface defects in ferromagnetic materials.

18. High-Field Magnets:

The development of high-field magnets for scientific research, magnetic resonance spectroscopy, and particle physics experiments benefits from Transient Magnetic Analysis to ensure magnetic field stability and safety.

19. Automated Guided Vehicles (AGVs):

AGVs used in logistics and manufacturing employ magnetic guidance systems. Transient Magnetic Analysis helps optimize these systems for precise navigation and efficient material handling.

20. Magnetic Suspension Systems:

Magnetic suspension systems in transportation, such as magnetic levitation (Maglev) trains and magnetic suspension bicycles, rely on Transient Magnetic Analysis for stability and control.

21. Marine Propulsion Systems:

Electric and magnetic propulsion systems in marine applications leverage Transient Magnetic Analysis for efficient propulsion, noise reduction, and maneuverability.

22. Magnetocaloric Cooling:

Transient Magnetic Analysis contributes to the development of magnetocaloric cooling systems, an environmentally friendly refrigeration technology with applications in residential and commercial cooling.

23. Renewable Energy Grid Integration:

Transient Magnetic Analysis assists in integrating renewable energy sources like wind and solar into the electrical grid, ensuring smooth energy conversion and grid stability.

24. Magnetotherapy Devices:

Medical devices employing magnets for therapeutic purposes benefit from Transient Magnetic Analysis to optimize field strengths and treatment efficacy.

25. Aircraft Electromagnetic Effects:

In aviation, Transient Magnetic Analysis is used to study the effects of electromagnetic fields on aircraft systems, including avionics, communication, and navigation.

26. Electromagnetic Railguns:

Military railgun systems rely on Transient Magnetic Analysis to understand the electromagnetic forces and interactions required for high-velocity projectile launches.

27. Plasma Confinement in Fusion Reactors:

In nuclear fusion research, Transient Magnetic Analysis helps design and control magnetic confinement systems for plasma stability and energy production.

The applications of Transient Magnetic Analysis continue to expand as technology advances, making it an indispensable tool for engineers and researchers seeking to optimize electromagnetic systems across diverse industries. Whether it's improving energy efficiency, enhancing medical devices, or safeguarding critical infrastructure, Transient Magnetic Analysis plays a vital role in driving innovation and ensuring the reliability of modern technology and infrastructure.

Results of EMWORKS' Transient Magnetic Analysis

The Transient Magnetic module outputs the following results for each study at each time step:

• Magnetic field
• Magnetic flux density
• Current density
• Eddy current
• Force density
• Inductance matrix
• Flux linkage
• Impedance
• Ohmic loss
• Current
• Voltage
• Force
• Torque
• Stored energy
• Temperature
• Temperature gradient
• Heat flux
